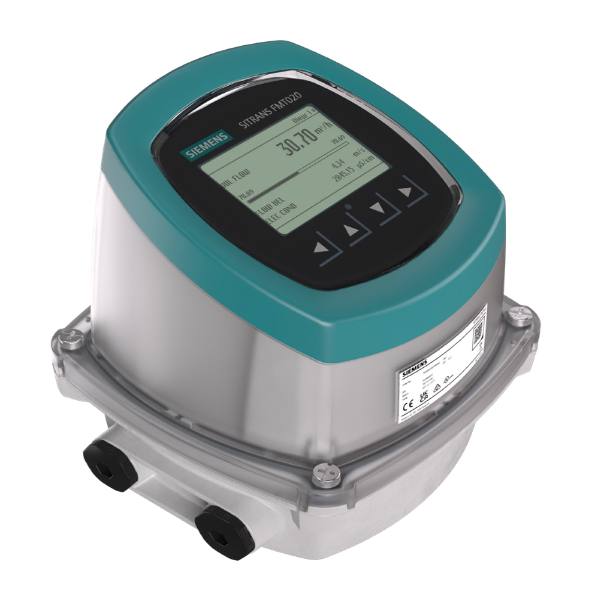

The SITRANS FMT020 is the new generation state-of-the-art transmitter in the Siemens electromagnetic flowmeter range, that includes backward compatibility with existing sensors including the MAG 5100W, MAG 3100, MAG 3100 P, MAG 3100 HT. The Sitrans FMT020 transmitter can be easily installed, programmed and commissioned on site with compact or remote mounting options.
Get ready for new experiences with the highly reliable SITRANS FMT020. It offers our proven SENSORPROM and unique fingerprint, combined with our embedded self-test, providing valuable information on meter performance at any time. With the new Bluetooth-operated Verificator tool, it goes beyond basic internal self-tests, to a full external verification with traceable report.
True flexibility means the SITRANS FMT020, in its award-winning, compact and robust enclosure offers trend-setting future -proof connectivity and digitalization features. It also provides a large set of flexible plug-and-play modules including Profinet and Ethernet.
The SITRANS FMT020 is a cost-effective solution, with higher customer value for your applications in the water industry, but also in all other industry segments. With the powerful combination of this new transmitter and our existing sensor range, our product solutions are perfectly suited to the most varied applications.
Â
Features:
Rugged and robust
The SITRANS FMT020 has a very robust one-piece top enclosure with the highest UV resistance. No more submerged and buried application challenges. Standard or potted high end IP68 enclosures are available.
Reliable in harsh environments
The SITRANS FMT020 is ready for new challenging environments with an enhanced operating temperature range, from -40 to 65°C.
User-friendly
The SITRANS FMT020 is equipped with a large, rotatable, backlit 14-digit graphical display for best visibility in any mounting position. Capacitive touch keys, 13 languages and menu-driven wizard for the easiest commissioning.
Easy data access
An independent Service port and SD card slot for easy data backlog is built in. You can access your data with our PDM tool as well for service purposes.
High-performing and accurate
For added value to our flow measurement, Siemens have improved the accuracy at the low end to +/-0.9mm/s, with a turn-down ratio of 1000:1. Combining flow speed value and conductivity with remarkable repeatability, the SITRANS FMT020 is one of the best performers on the market.
Versatile mounting
Compact or wall bracket mounting can be determined directly on site without any hardware change.
Seamless integration
Your SITRANS FMT020 has room for flexible growth. Plug & play communication modules can be added: HART 7, Profinet, Ethernet IP or MODBUS RS485 are available as options with more to come (Profibus DP, Profibus PA or Bluetooth).
For all additional details see attached data sheet
