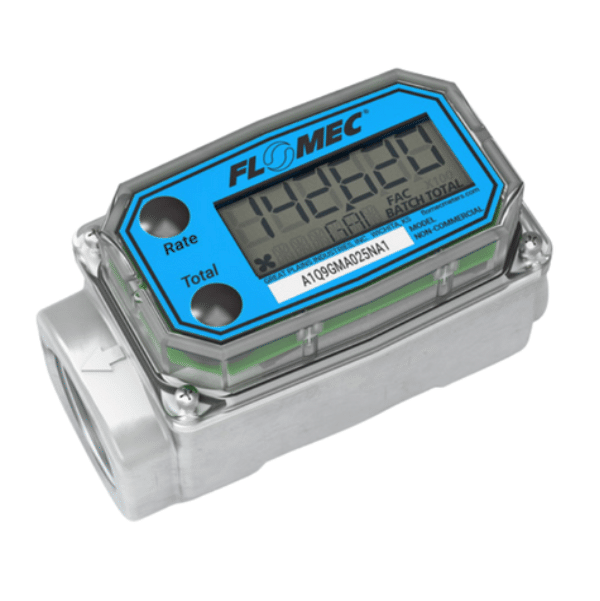

Flomec A1 compact series meters are designed as self-contained, battery powered Inline Flow Meters. Select the A1 Series when you need an accurate, basic nylon meter for use in water or non aggressive chemical applications or aluminum for petroleum products. Both Nylon and Aluminum A1 meters are available with local display or blind pulse output for communication with process control equipment and 1” BSPF inch process connections. The Nylon & Aluminum low flow models have a flow range from 1 – 11 lt/min while the Aluminum standard meter is also available with a higher flow range from 11 – 190 lt/min. Application dependant accuracy of ± 0.5%. Pressure rated to 50 psi and operating temperature up to 52° C.
All A1 meters are fitted with the Q9 Display that indicates batch (reset) total, cumulative non volatile total and rate of flow and are factory calibrated in litres and gallons that are standard defaults with user configuration. The Q9 computer display incorporates many features including low battery indication and is fitted with two AAA Alkaline batteries with 2 year life. The A1 Meters can be field calibrated to suit different fluids
Applications include:
- Plant Process Water
- Batching / Blending
- Fuel Products (Aluminum model)
- Water / Non-aggressive Chemicals (Nylon model)
